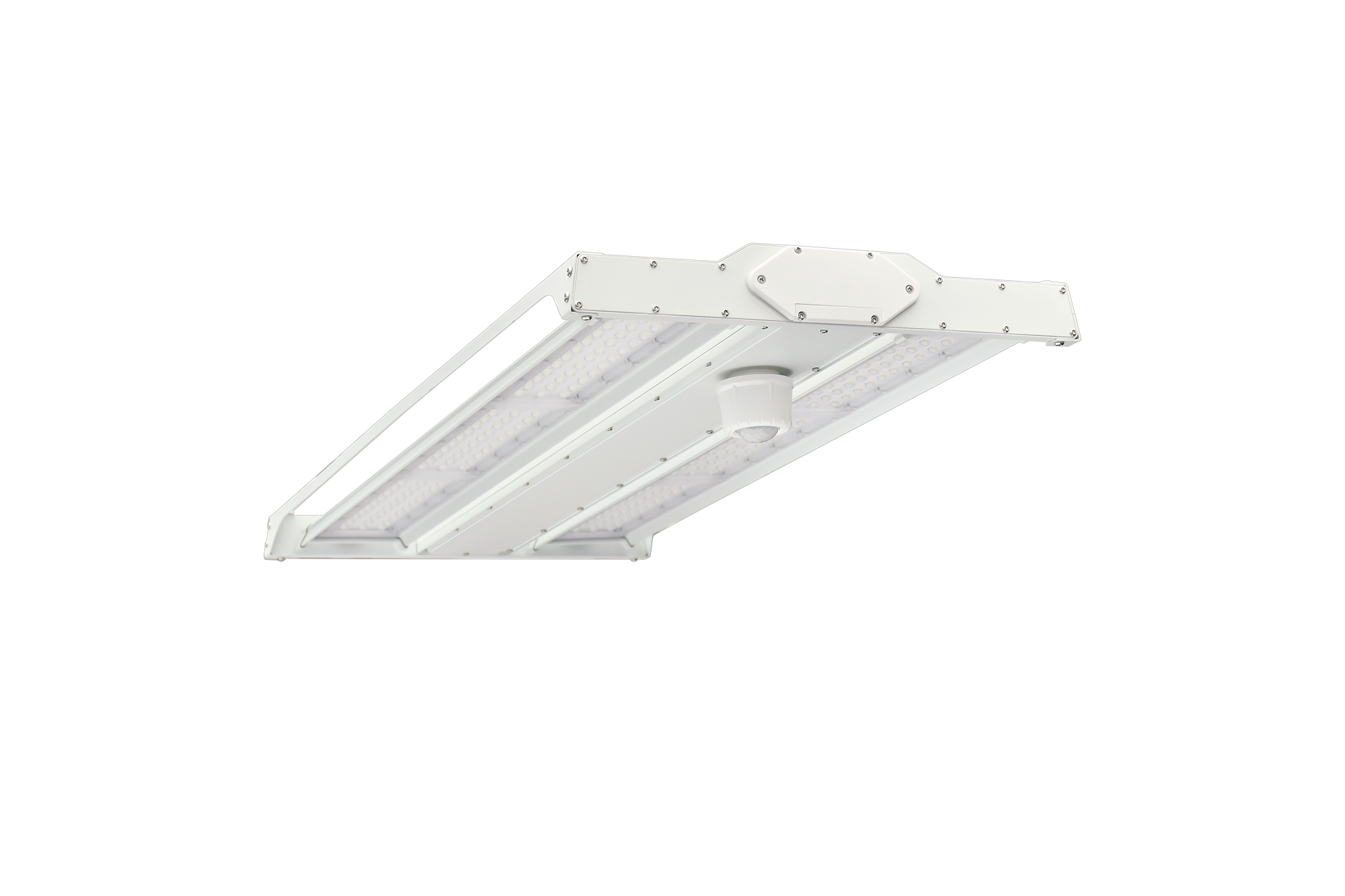

IP65 LED High Bay Fixtures

Built for High Heat and Challenging Work Environments. Engineered for Performance. Designed to Last.

The Challenger Highbay LED is a rugged, high-performance industrial lighting solution engineered for the most demanding environments. Designed to operate in temperatures from 65°C to 70°C (150°F to 160°F), the Challenger delivers reliable performance where traditional LED fixtures fail.

Whether in manufacturing, food processing, warehouses, swimming areas, or high-ceiling industrial spaces, the Challenger Highbay provides superior light output, long life, and advanced control integration.

Why Challenger Highbay

• Designed for high-temperature industrial environments
• Up to 170 lumens per watt
• 26,000 – 42,000 lumen configurations
• 200,000 hour system life with controls
• IP65 rated for washdown and harsh conditions
• Rotating light bars for optimized light placement
• Reduced glare optics
• 10kV surge protection
• Advanced sensor and wireless control ready

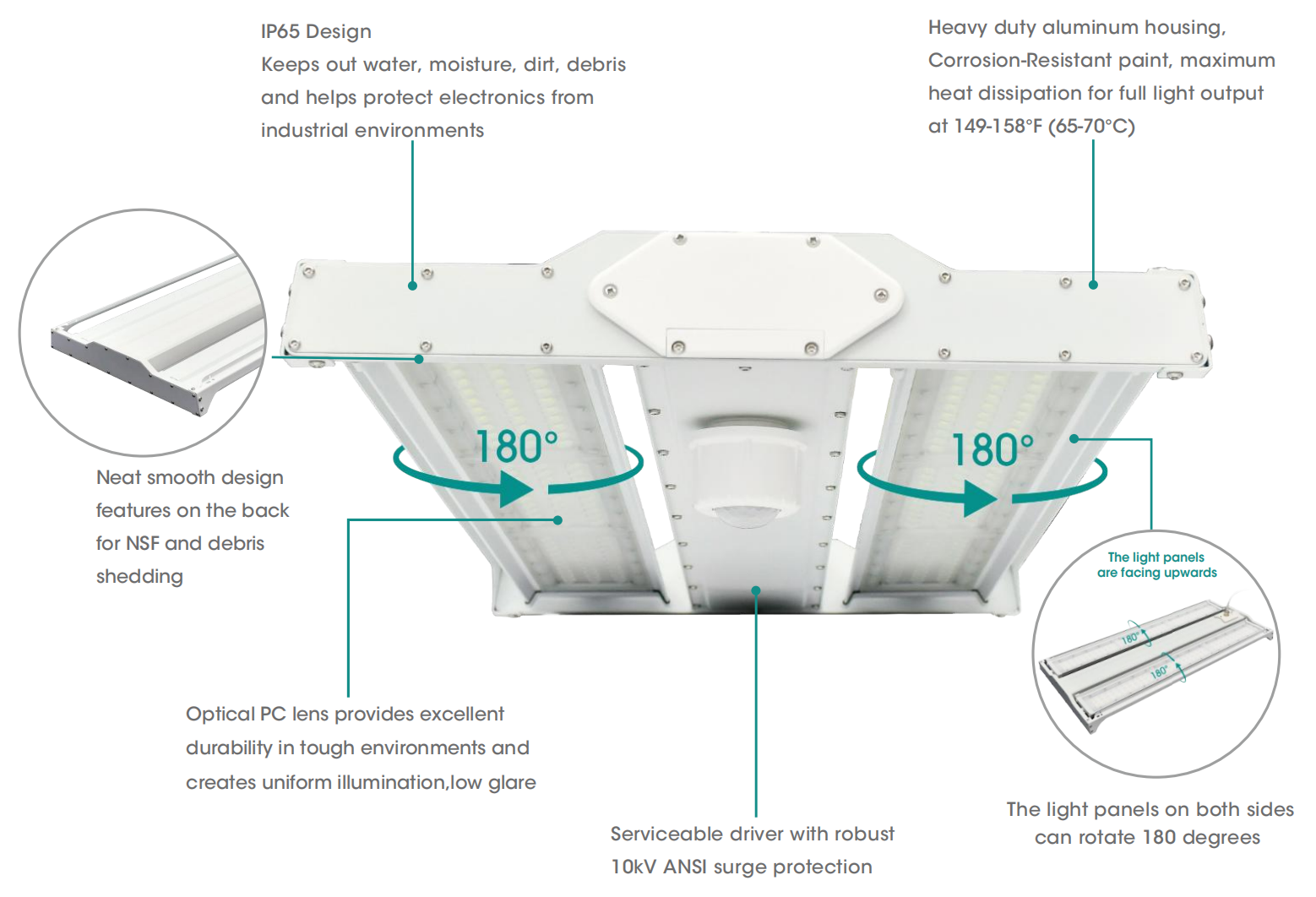

Built for Harsh Industrial Environments

The Challenger Highbay is engineered with a heavy-duty aluminum housing, corrosion-resistant finish, and advanced thermal management to ensure consistent performance in high heat applications.

Ideal for:

• Manufacturing plants
• Food processing facilities
• Cold storage
• Warehouses
• Ice rinks and gyms
• Natatoriums
• Industrial high-bay spaces

The fixture maintains full light output in environments up to 65°C to 70°C (150°F to 160°F) where traditional LED fixtures experience rapid failure.

Advanced Thermal Design

The Challenger Highbay includes:

• Ceramic heat sink technology
• Separated driver chamber
• Maximum heat dissipation design
• Temperature throttling protection
• Long-life LED architecture

This design dramatically extends fixture life and reduces maintenance costs in high-ceiling industrial environments.

High Performance Light Output

The Challenger delivers more light with less energy.

Example: 200W Challenger fixture = 34,000 lumens

This exceeds typical industrial fixtures while reducing energy consumption.

Rotating light bars allow light to be directed exactly where needed, often reducing fixture counts and further lowering energy use.

Smart Controls + Software Integration

When paired with SmartProControls, the Challenger Highbay becomes a complete intelligent lighting system:

• Occupancy-based dimming
• Daylight harvesting
• Scheduling
• Energy monitoring
• Demand charge reduction
• Heat mapping
• Emergency lighting testing
• Carbon reporting
• Multi-site analytics

These features can deliver 30–40% additional energy savings beyond LED alone.

Reduced Maintenance. Longer Life.

The Challenger Highbay is designed to last 2–3 times longer than typical LED highbays.

Benefits:

• Fewer fixture failures
• Reduced maintenance costs
• Longer replacement cycles
• Improved reliability in high heat
• Consistent light levels

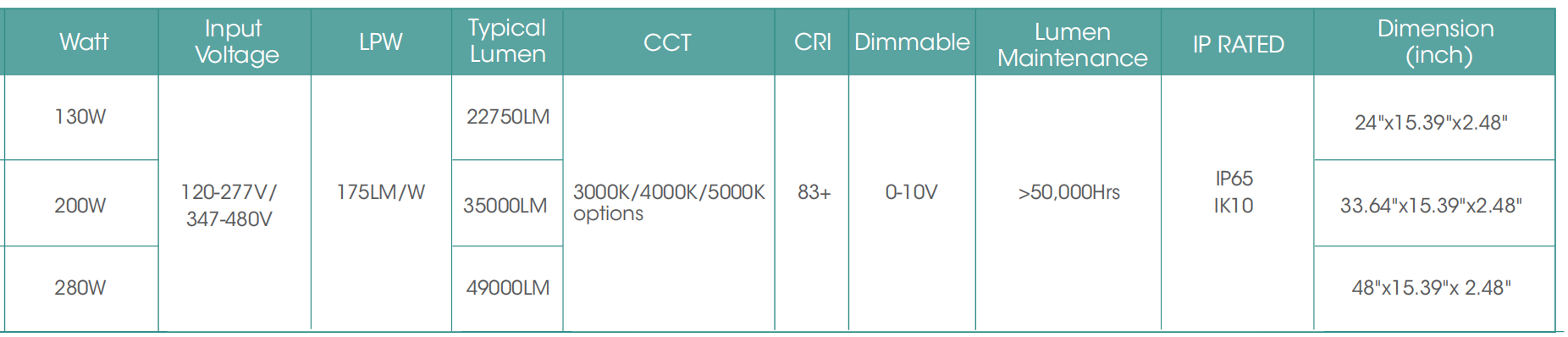

Available Options

• Standard / Narrow / Wide optics
• Motion sensor (up to 60 ft)
• Wireless controls
• Multiple lumen packages
• Rotating light bars
• Washdown-rated housing (IP65)

Typical Applications

High temperature manufacturing
Automotive plants
Food processing facilities
Steel & heavy industry
Warehouses
Distribution centers
Gymnasiums
Cold storage
High ceiling industrial spaces
