Useage:Replacement HID,T8 or T5 fluorescent of 15' to 45' ceilings
Installation:Hanging/Surface/Adjustable
Beam angle:120 Degree
LED Light Source:SMD 2835
Warranty(Years):5 Years
Lighting solutions service:Lighting and circuitry design
Lighting solutions service:DIALux evo layout
Lighting solutions service:auto CAD layout
Lighting solutions service:Project Installation
CRI (Ra>):85
Lamp Body Material:aluminum
IP Rating:ip44
Certification:ce
Certification:EMC
Certification:ETL
Certification:FCC
Certification:LVD
Certification:ROHS
Application:WAREHOUSE
Light Source:LED
Warranty(Year):5-Year
Place of Origin:CN;GUA
Luminous Efficacy(lm/w):160
Input Voltage(V):AC100-277V&AC100-247V
Lamp Luminous Flux(lm):16000
Working Temperature(℃):-40 - 50
Working Lifetime(Hour):50000
Brand Name:Sunpzone
Model Number:SPZLHB12F100P
Specification
Welcome to SunPZone Led Lighting
• Intelligent Lighting:zigbee wireless control, daylight sensor dimming,microwave sensor dimming, three in one(0 - 10v,PWM, Resistance) dimming available.
• Wireless connectivity with software for easy reporting and fine tuning of lighting settings anytime, anywhere.
• Software-defined coordinated control and progressive dimming to maximize occupant comfort and energy savings
• Integrated occupancy sensing, daylight sensing, and power metering for maximum efficiency • Big rebates save more through utility rebates. All models are DLC Premium listed
• Stays cool. 24/7 operation at high ambient temperatures (up to 55°C).
Model
Watt
(W)
Input Voltage
Lumen
(Lm)
DLC
Primary Use
IP Rate
Size
(Inch)
SPZLLB12F65P
65
100-277V
100-347V
10400
Low-Bay Luminaires
IP40
23.74*14.17*2.95
SPZLHB12F80P
80
100-277V
100-347V
12800
High-Bay Luminaires
IP40
23.74*14.17*2.95
SPZLHB12F100P
100
100-277V
100-347V
16000
High-Bay Luminaires
IP40
23.74*14.17*2.95
SPZLHB14F130
130
100-277V
100-347V
18200
High-Bay Luminaires
IP40
45.67*14.17*2.95
SPZLHB14F165P
165
100-277V
100-347V
26400
High-Bay Luminaires
IP40
45.67*14.17*2.95
SPZLHB22F200P
200
100-277V
100-347V
32000
High-Bay Luminaires
IP40
23.74*23.74*2.95
SPZLHB24F240P
240
100-277V
100-347V
38400
High-Bay Luminaires
IP40
45.67*23.74*2.95
SPZLHB24F320P
320
100-277V
100-347V
51200
High-Bay Luminaires
IP40
45.67*23.74*2.95
Product Description
Feature:
• 65W-320W in available.
• Long lifespan 50000hours. • Uniform lighting effect. • Quick starting. • No stroboscopic effect; no glare. • High heat-sink efficiency: use thermal column to help heat sink. • No mercury or lead; environmental protecting. • Save 60% energy than conventional light. • DLC ETL CE and RoHS certified
Gain versatility without sacrificing continuity
• Its modular design provides the flexibility of different outputs and multiple distributions, all from the same basic luminaire construction, allowing you to choose just the right solution for each space within your application, while maintaining fixture continuity.

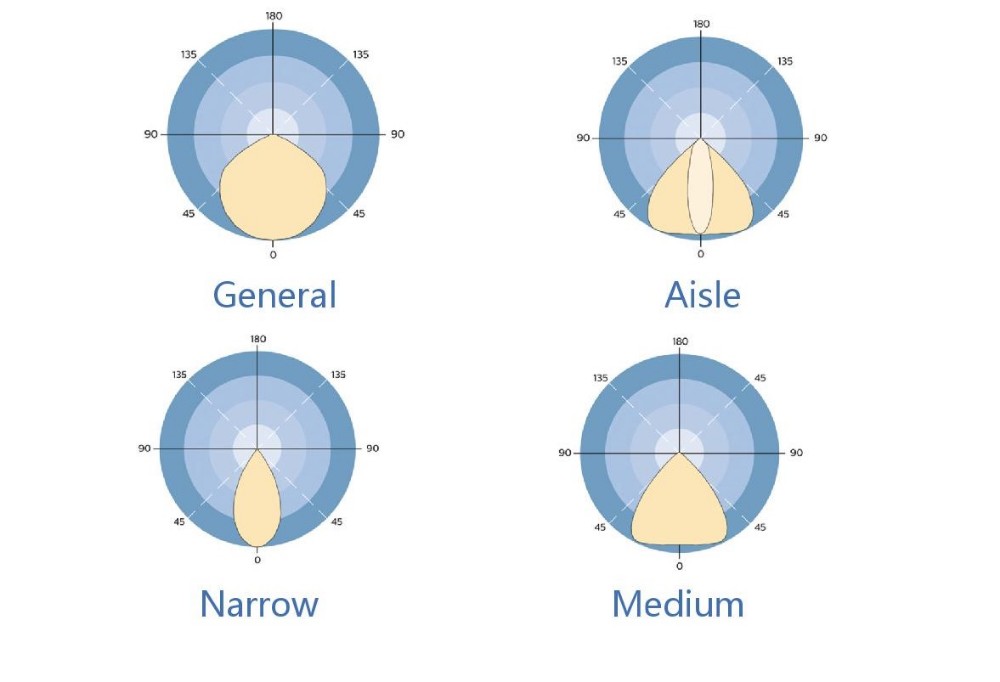

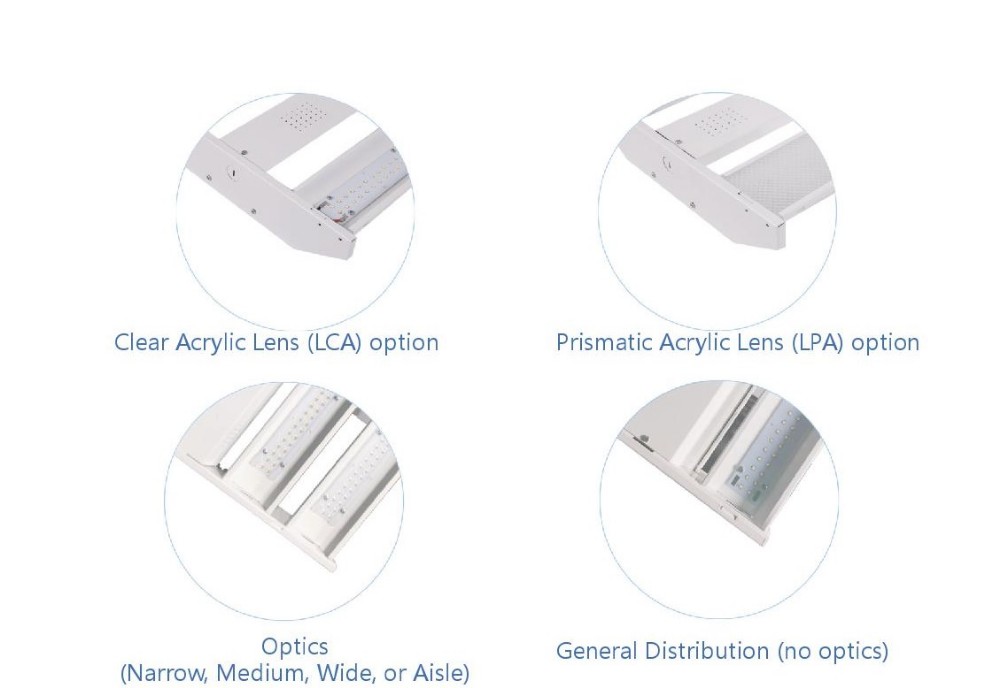

Choose your optical distribut ion
• Each optic is designed for a specific purpose. The general distribution allows a wash of light in any application.
• The aisle beam has an asymmetric distribution for aisle or rack areas.
• The narrow beam allows focused light in higher ceiling areas.
• The medium beam is tailored for mid mounting heights.

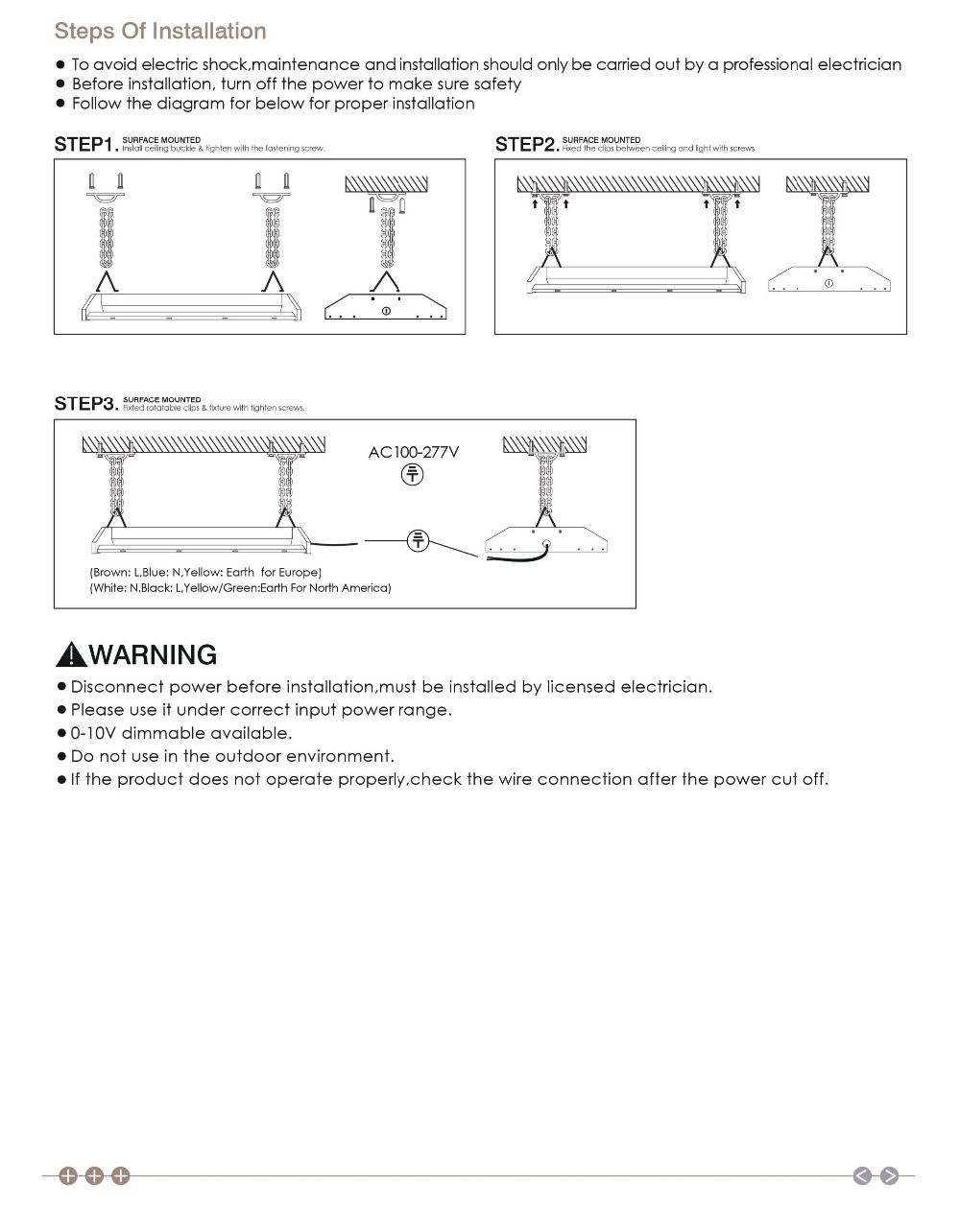

Installation Process

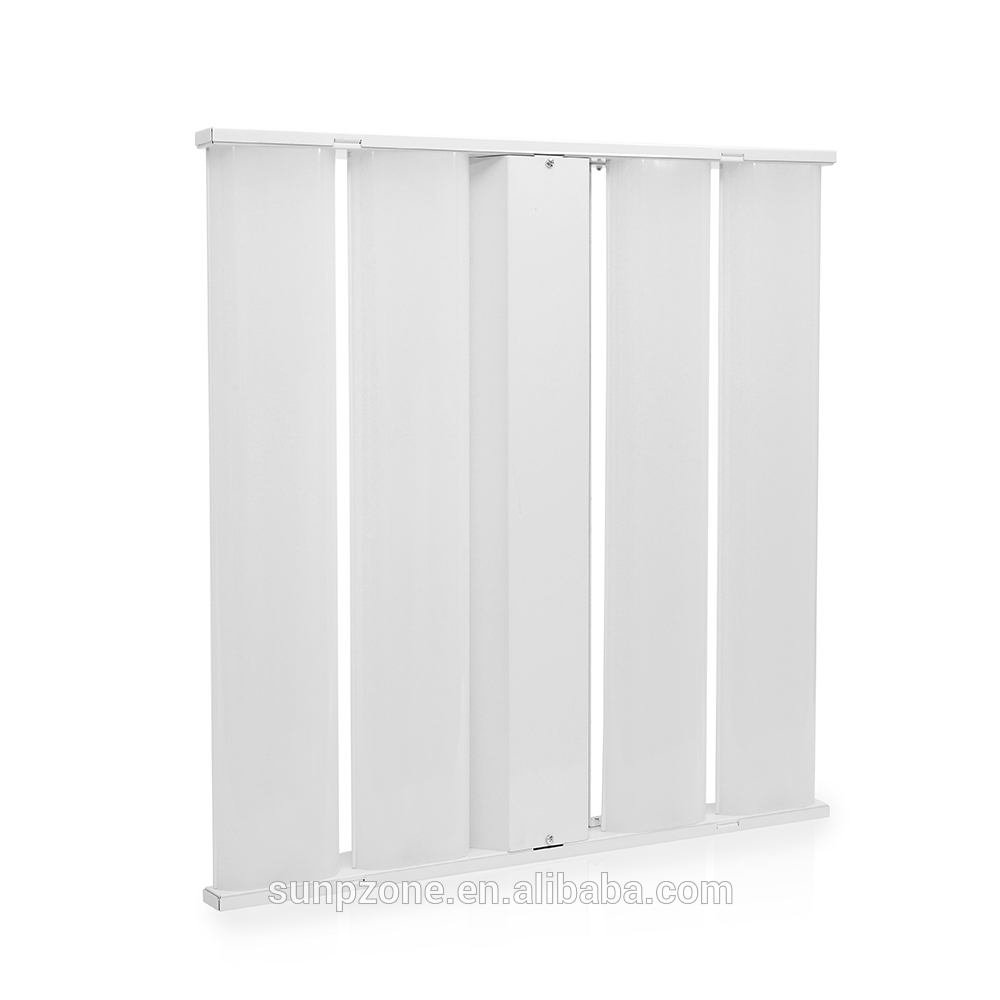

China super lumen high bay led lights linear ceiling fixing 160lm/w 100w warehouse industrial light fixtures

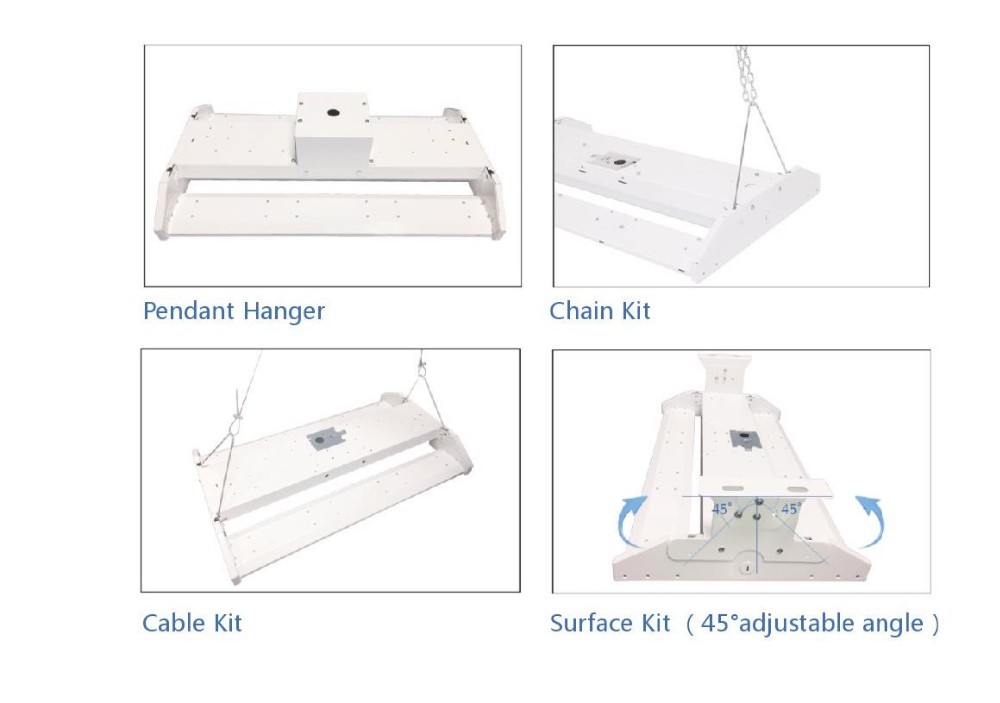

Mounting Options
• Installation Type: Standard Suspending Kits / Surface mounted
• Cover Options: Without cover / Clear PC cover / Prism Cover
Model
Carton Size
(Inch)
Qty/Carton
(PCS)
G.W./Carton(LB)
SPZLLB12F65P
25.5*16.9*8.3
2
22.92
SPZLHB12F80P
25.5*16.9*8.3
2
22.92
SPZLHB12F100P
25.5*16.9*8.3
2
22.92
SPZLHB14F130
47.6*16.9*8.3
2
37.47
SPZLHB14F165P
47.6*16.9*8.3
2
37.47
SPZLHB22F200P
25.5*25.1*8.3
2
34.28
SPZLHB24F240P
47.6*25.1*8.3
2
56.88
SPZLHB24F320P
47.6*25.1*8.3
2
56.88

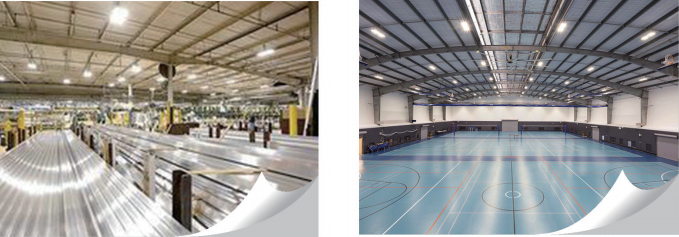

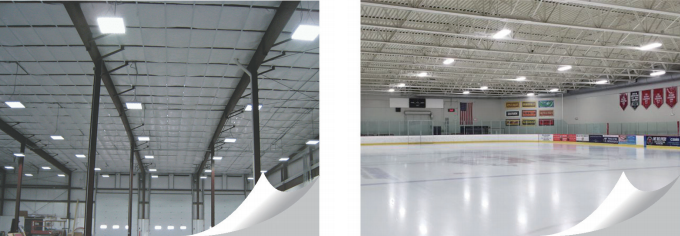

Applications
China super lumen high bay led lights linear ceiling fixing 160lm/w 100w warehouse industrial light fixtures
• Warehousing • Gymnasiums • Light industrial spaces • Office • Classroom• Retail space • Parking structure • other large indoor spaces with mounting heights ranging from 15' – 40'.

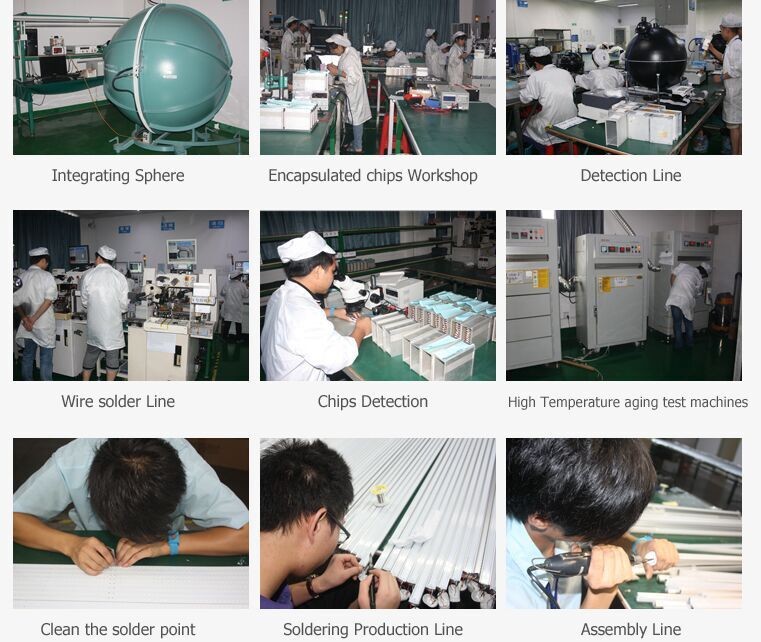

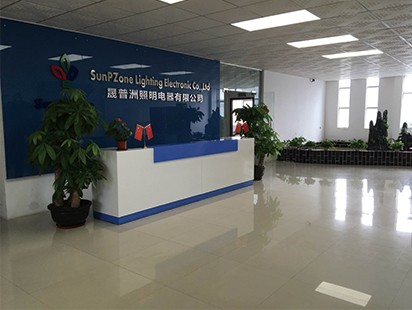

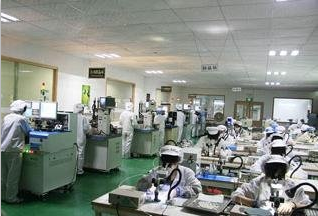

Company Information
SunPZone Lighting Electronic Corporation is a professional lighting company handling research, manufacturing and sales of all kinds of LED lighting products, which covers Commercial Lighting, Office Lighting, Outdoor Lighting,
Residential Lighting and Lamps etc.
SunPZone main products are including led ballast friendly T8 tube, Linear High Bay Light, Led tri-proof lights,LED integrated fixtures,LED UFO High Bay Lights,LED Linear Light,etc.
SunPZone products are ETL listed or DLC approved and ENERGY SATR certificated.
SunPZone led lights had been applied in Florida nuclear power plant, Toyota car plant, Honda car plant, citi bank, Pepsi plant in North America.
SunPZone is based on expertise led production skills and the ability of research and development, Sunpzone has received a lot of praise and trust from our loyal customers and gradually been recognized and selected as an ideal partner..
Certifications
FAQ
♥ Reliability
1. As long as 72h aging test with automatic switching before each shipment.
2. 100% vibratility test will make sure the fastness of the assembling.
3. 100% resist voltage test of AC85-305v makes sure those tubes compatible for both 120v and 277v.
4. More than 95% lumen maintenance based on the 6000h LM-80-08 test
5. -40°C to 50°C(-40°F to 122°F) extreme environment compliant.
♥ Shipping options
1. By express: Such as DHL,UPS, TNT, FEDEX etc. The dispatch time is about 3-7 working days.
2. We will search for an economical shipping company to transport the goods safely.
3. Air Freight: When you order more than 100kg which will be more economical than express.
4. Agent designated by client: Please tell us the contact details of your shipping agent/forwarder
♥ Trade Terms
1. Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery.
2. Production lead time for 100~500pcs: 7days, 500~1000pcs:10days
3. Sample can be delivered in 3 days
4. Shipping port:SHENZHEN/HONGKONG
5. Discounts are offered based on order quantities
