Sterilization LED Panel Light | ||||
Model Number | SPZUCP2250 | |||
Wattage | 50W (Led 35W, Fan 15W) | |||
Efficacy | Up to 110LM/W | |||
Input Voltage | 100 - 277V | |||
Typical Lumens | 4000LM | |||
Dimension | 2*2ft (600.92*600.92*137.2mm) | |||
CRI (Ra) | >80 | |||
Power Factor | >0.95 | |||
Led Chip Lifetime | L70 >100,000 hours @ 25ºC | |||
Working Time of Filtration Layer | 2160 Hours | |||
Main Material | ABS/PC Plastic Cover + Nanometer Layer + Four Layer Constitution Filtration + Centrifugal Industrial Fan | |||
Warranty | 3 Years | |||
Features:
* Can kill the H1N1 virus, Staphylococcus Aureus, Escherichia Coli etc.
* Eliminating indoors Formaldehyde,Benzene, Toluene, Xylene, Ammonia,TVOC concentration,etc
* Cleaning and freshing air
* Automatically killing bacteria and virus in air
* Automatically killing bacteria and virus in air
* Reducing the floating particles in air
* Saving installation space
* Saving installation space
* High-tech optical design
*Suitable for school, hospital, subway station, office, chain stores and etc.

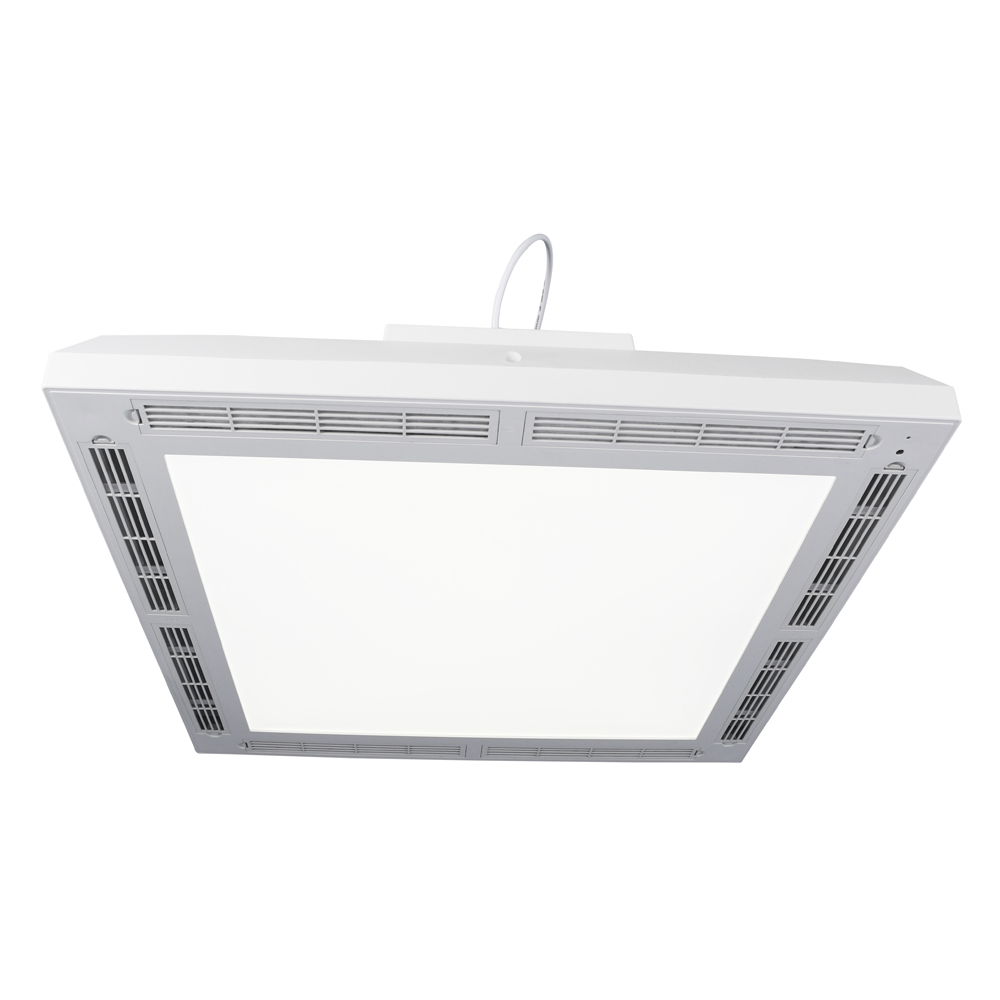

Ultraviolet air circulating disinfection panel light for 2x2
Eliminating Bacteria and Viruses Working Principle

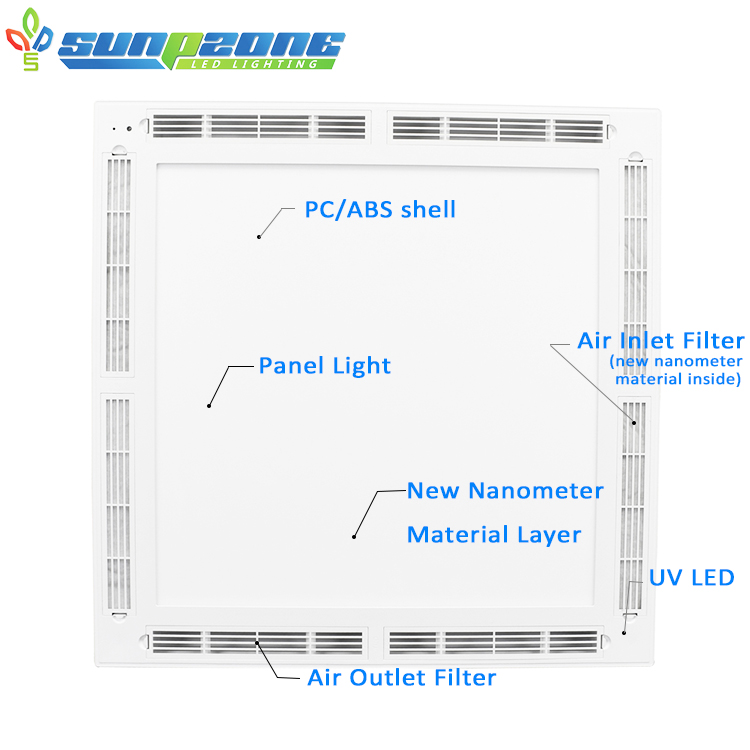

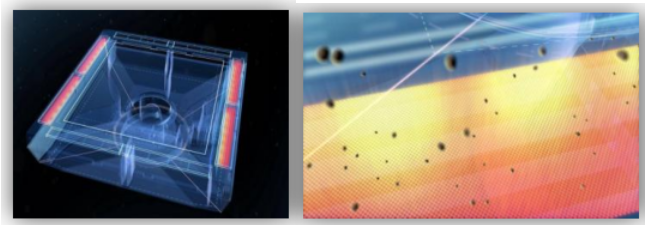

Fixture with centrifugal industrial fan New nanometer material filter

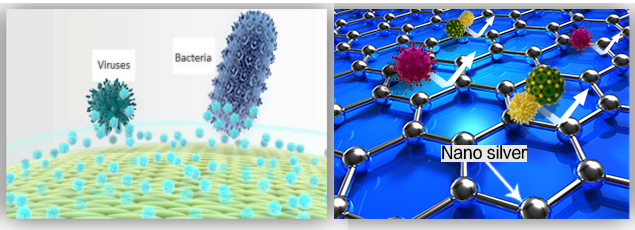

Nanometer silver killing the bacteria and virus New nanometer material on PC surface
Three kinds of antiseptic and antiviral mechanisms, offer you 24H all-weather protection against bacteria and virus with/ without light
1. The surface of PC cover is coated with Nanometer Silver and Titanium Dioxide and the filters are also soaked with Nanometer Silver and Titanium Dioxide.
When the bacteria or virus in air touch the surface of the Nanometer coating or filters,then they will be killed.
•Silver ion reacts with hydrogen sulfide ion in bacteria and inhibits its reproduction
•Produces superoxide free radicals and breaks down the bacteria
•Material surface is with electric charge that pull the membranes of bacteria, cause rupture and bring bacteria to death

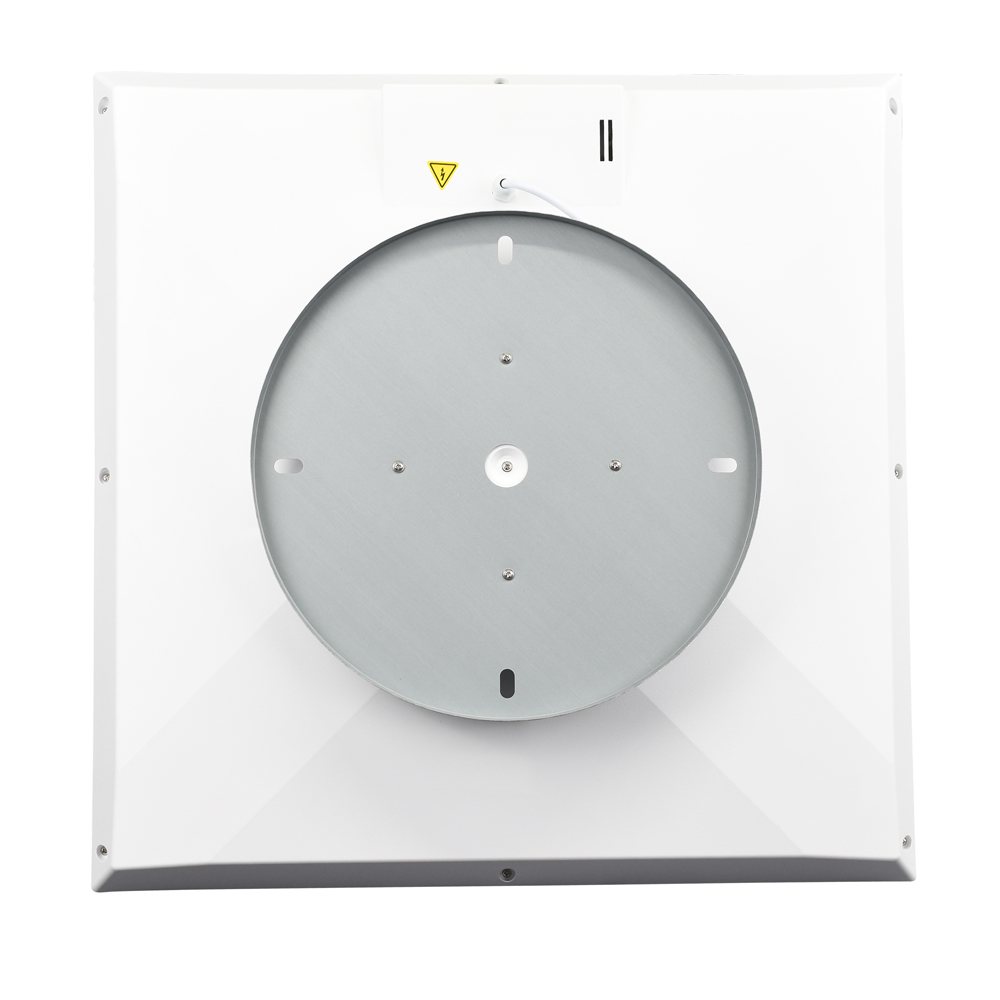

2. The fixture is installed with centrifugal industrial fan which is powerful and silent with less noise when it works. Air comes into the intake and goes out through the outlet. The inhaled air will be purified by getting rid of the floating particles and automatically killing bacteria and virus in air.
Test Reports
A. Test and Verification for Anti-viral Effect of New Nanometer Compound Material
Classification | Type | Effect |
Virus | H1N1 | 99.99% of virus is eliminated after 20 minutes |
Enterovirus | 99.99% of virus is eliminated after 20 minutes | |
Respiratory mixed virus | Inhibiting ability reaches 90.0% |
B. Test and Verification for Antiseptic Effect of New Nanometer Compound Material
Classification | Type | Effect |
Bacteria | Superbug | Antiseptic rate after 24 hours >99% |
Tubercle | Inhibiting rate of 24 Tubercle>80.8% | |
Pseudomonas Aeruginosa | Antiseptic rate after 24 hours >99% | |
Staphylococcus | Antiseptic rate after 24 hours >99% | |
Escherichia Coli | Antiseptic rate after 24 hours >99% | |
White Candida | Antiseptic rate after 10 minutes >99% | |
Pneumophilia | Antiseptic rate after 24 hours >99% | |
Salmonella | Antiseptic rate after 30 minutes >99% |
C. Test and Verification for Organic Gas Decomposition
Classification | Type | Effect |
Microbe | 5 common microbes | No microbe growing after 28-day culture |
Environment | Formaldehyde | Antiseptic rate after 24 hours >99% |
TVOC | Antiseptic rate after 24 hours >96.4% | |
ROHS | No Pb, Hg, Cd, Cr, PBB, PBDE |
D. Antiseptic Test for Air-circulating Panel Light
Specification referred to GB21551
(test space is revised as large as 1 m³)
1. Inject Staphylococcus aureus by gas in a 1m³space
2. Calculate value of natural colony ratio / formaldehyde concentration ratio before and after placing this fixture into the enclosed space
3. As a clean antibacterial effect

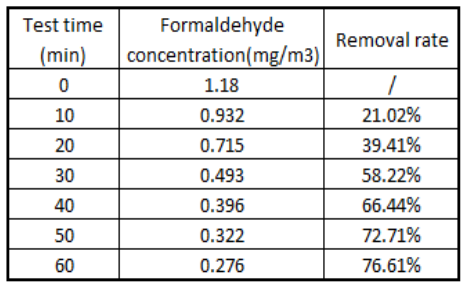

E. Air-circuiting Panel Light Formaldehyde Decomposition Test

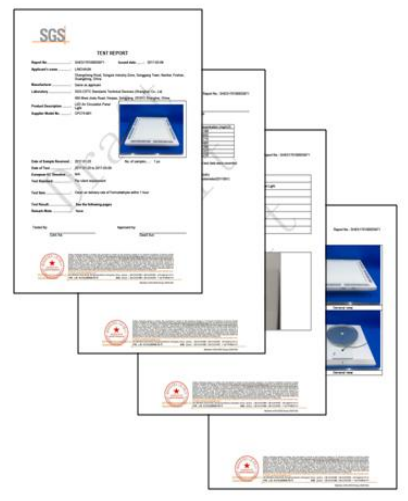

Pass the SGS lab test
1. Conduct the experiment according to national standard GB18801-2015
2. Use 30-cubic meters experimental chamber
3. Decomposition and removal rate of formaldehyde reaches 76.61% in an hour
3. Decomposition and removal rate of formaldehyde reaches 76.61% in an hour

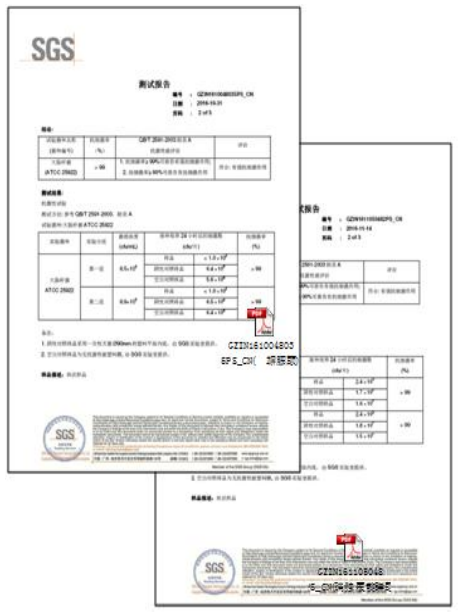

F. Antiseptic Test for Panel Light

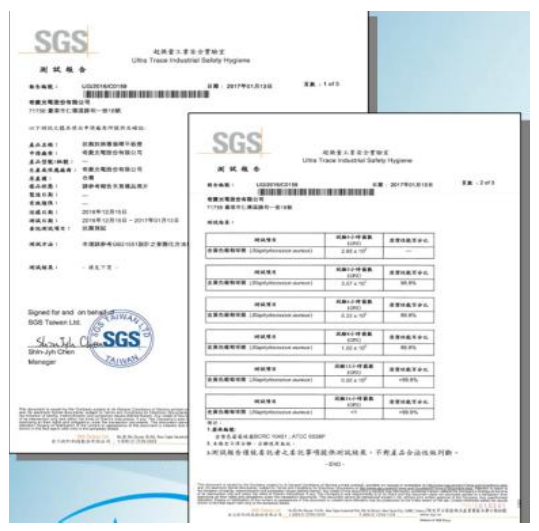

Pass the SGS lab test

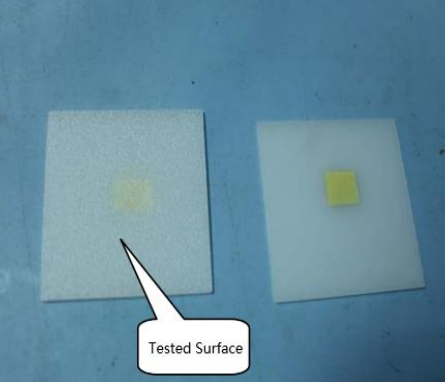

Shiny Surface Test(expanded)
• Conduct the experiment according to national standard QB/T2591-2003
• Removal rate of staphylococcus reaches 99%
